Equipment
Equipment
Diamonds recovery
All
All
All
-
X-ray luminescence sorter LS-20-05-2Ndiamond recovery machine designed for primary treatment of wet material -50 +10 mm. -
X-ray luminescence sorter LS-20-09Ldiamond recovery machine designed for primary treatment of wet material -50 +5 mm (including with low-luminescent diamonds and type 2 diamonds). -
X-ray luminescence sorter LS-20-09diamond recovery machine designed for primary treatment of wet material -50 +5 mm. -
X-ray luminescence sorter LS-20-05Ldiamond recovery machine designed for primary treatment of wet and dry material -20 +5 mm (including with low-luminescent diamonds and type 2 diamonds). -
X-ray luminescence sorter LS-20-05NLdiamond recovery machine designed for primary treatment of wet material -25 +5 mm (including with low-luminescent diamonds and type 2 diamonds). -
X-ray luminescence sorter LS-20-05Ndiamond recovery machine designed for primary treatment of wet material -20 +5 mm. -
X-ray luminescence sorter LS-50-05 (OKDS)diamond recovery machine designed for primary treatment and reconcentration of wet material -50 +5 mm (including with low-luminescent diamonds and type 2 diamonds). -
X-ray luminescence sorter LS-50-05diamond recovery machine designed for primary treatment and reconcentration of wet material -50 +5 mm. -

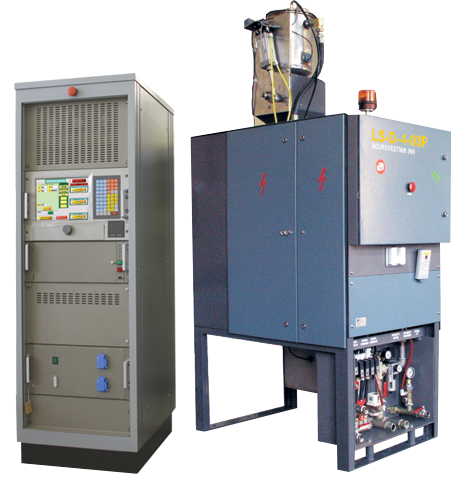

X-ray luminescence sorter LS-D-4-03Pdiamond recovery machine designed for reconcentration of wet material -6 +1 mm.
Equipment
Diamonds sorting
-
Automatic diamond quality sorting machine ASA-1KIt is designed for sorting diamonds of -4.5 +1.8 mm in size into 12 classified positions. -
Diamond color sorting machine ASA-1CDesigned for color sorting of diamonds of -4 +1.8 mm in size into 12 classified positions. -
Automatic diamond sorting machine ASA-2FIt is designed for sorting diamonds of -4.5 +1.8 mm in size into 10 classified positions. -
Box completion machine AKB-1Designed for automatic sorting of diamonds and other gemstones by weight and classification features.
Equipment
Mineral ore sorting
-

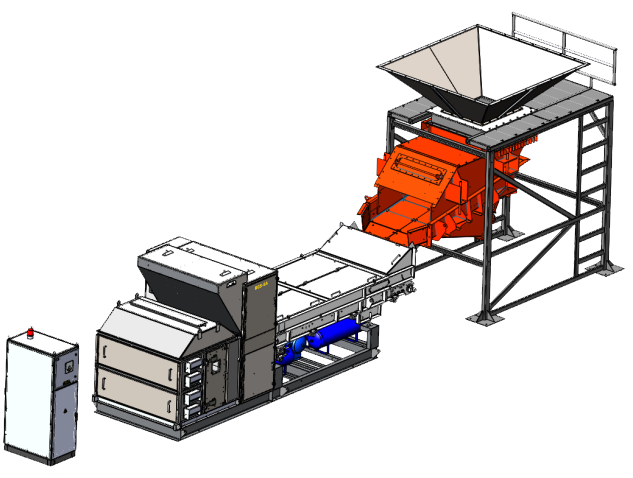

X-ray transmission sorter RGS-6AX-ray transmission (XRT) sorter RGS-6A is designed for a primary enrichment of various ores of -100 +6 mm coarseness by an X-ray absorption separation method. -

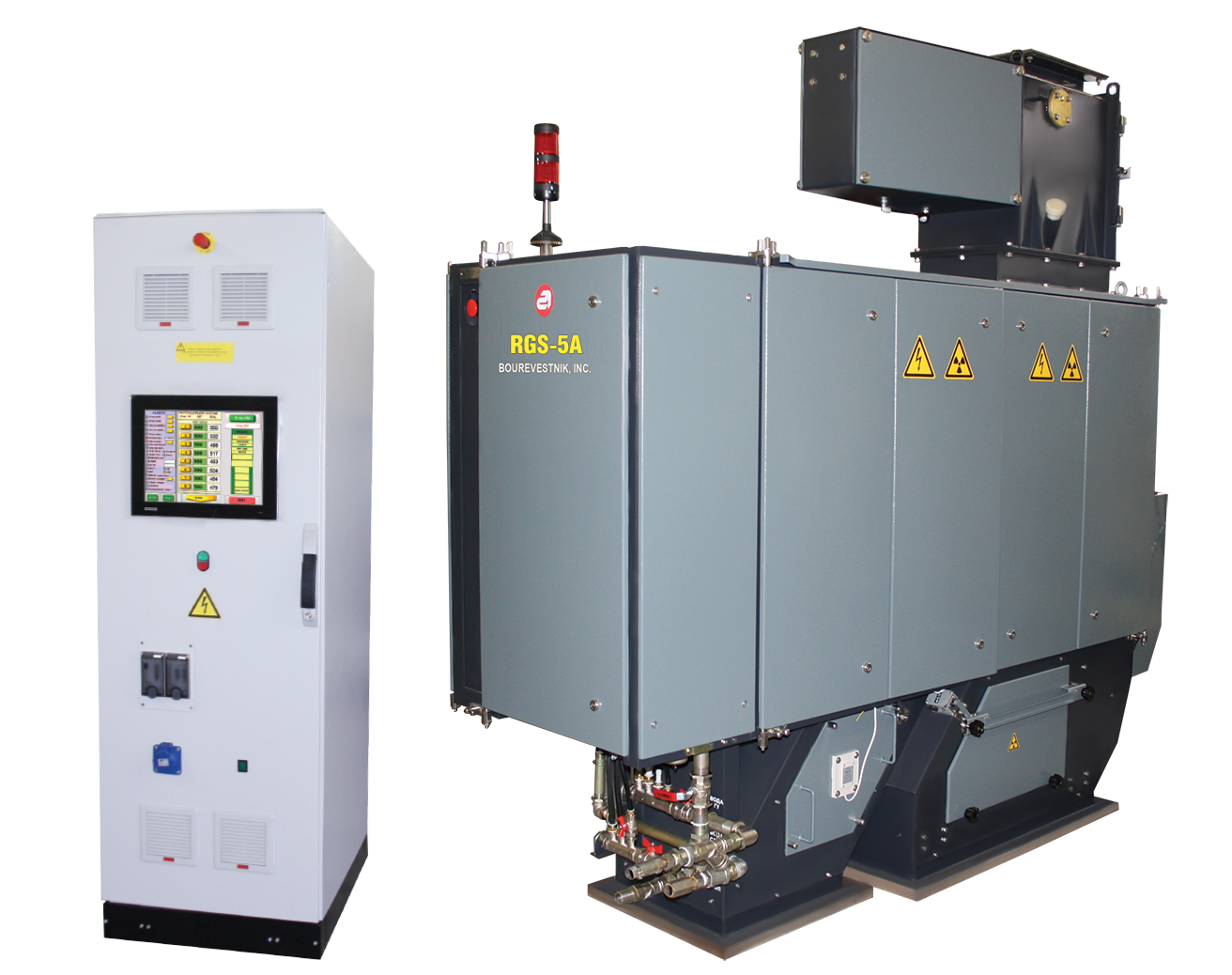

X-ray transmission sorter RGS-5AX-ray transmission (XRT) sorter RGS-5A is designed to recovery valuable minerals from waste materials in the range of -50 +10 using x-ray transmission technology. -

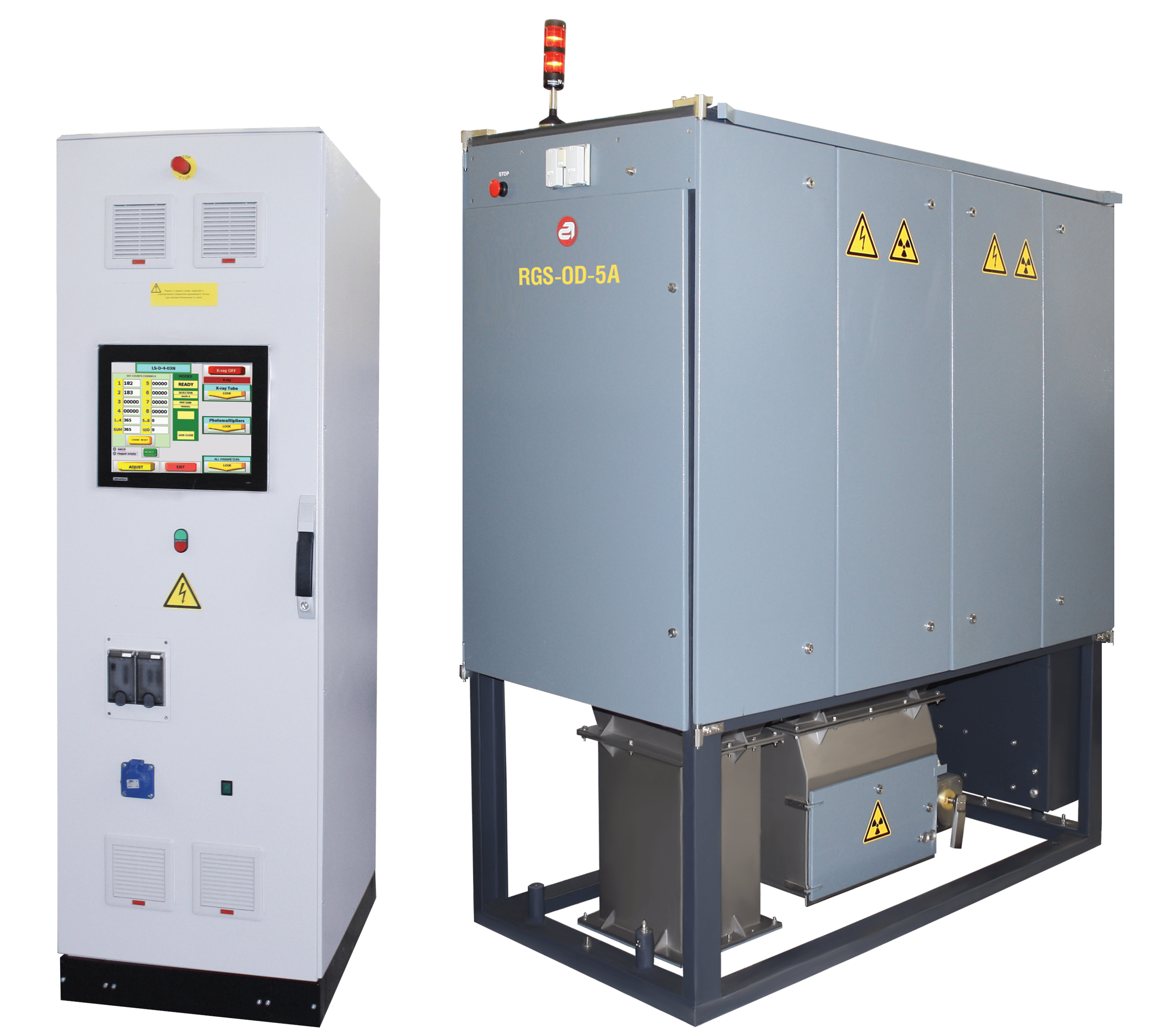

X-ray transmission sorter RGS-OD-5АX-ray transmission (XRT) sorter RGS-OD-5A is designed for final finishing of dry or wet concentrate of various ores of -50 +10 mm coarseness by X-ray absorption separation method.
Equipment
XRF spectrometers and diffractometers
-
General-Purpose X-ray diffractometer DRON-8NX-ray diffraction analysis of phase composition, structural state and orientation of a wide range of objects. -
General-Purpose X-ray diffractometer DRON-8Thigh-precision X-ray diffraction analysis of phase composition, structural state and orientation. -
COLIBRI Benchtop X-ray Diffractometerthe instrument is a convenient and mobile tool for phase identification and structural analysis of various polycrystalline materials.
-
X-ray Fluorescence Spectrometer BRA-135Fis designed to determine the content of chemical elements in the range from 9F to 92U in liquid, powdered and solid samples, as well as aerosols deposited on the filter.
-
X-ray wavelength dispersive sulfur analyzer ASW-3is designed for analysis of sulfur content from 2 mg/kg in petroleum products according to GOST R 52660 and ISO 20884.
-
X-ray fluorescent energy dispersive sulfur analyzer ASE-3is intended for quantitative determination of sulfur in petrochemicals in range of 5 to 50000 mg/kg.
-
X-ray wavelength dispersive sulfur analyzer ASW-2is designed for analysis of sulfur content from 2 mg/kg in petroleum products according to GOST R 52660 and ISO 20884.
-
X-ray fluorescent energy dispersive sulfur analyzer ASE-2is intended for quantitative determination of sulfur in petrochemicals in range of 5 to 50000 mg/kg.
-
Robotic diffractometer PELICANanalysis of residual stresses in hard-to-access surface areas of large-scale metallic components and alloys.
Equipment
XRF slurry analyzers and analytical systems
-
On-stream WDXRF Analyzer AR-35for real-time analysis of the chemical composition of streams of slurry, suspensions and solutions -
Automated system of analytical monitoring (ASAM)based on the on-stream WDXRF analyzer;
real-time sampling and elemental analysis of samples;
preparation of balance samples. -
On-stream XRF Single-cell Analyzer AROfor online elemental analysis of products, it is possible to install directly next to the sampling point.
X-ray crystal optics elements
To learn more
50 years of experience in the development and production of crystal diffracting and dispersing components!
Thousands of crystal diffracting and dispersing components (CDDC) made by Bourevestnik, JSC are installed into all serial Russian national X-ray instruments, provide fundamental and applied developments done at R&D centers, are continuously supplied to industrially developed countries.
A wide range of CDDCs application promotes a variety of materials, sizes and forms of components with limited scopes to supply. Our technologies are focused on small-batch and single-piece production with a thorough step-by-step control.
Thousands of crystal diffracting and dispersing components (CDDC) made by Bourevestnik, JSC are installed into all serial Russian national X-ray instruments, provide fundamental and applied developments done at R&D centers, are continuously supplied to industrially developed countries.
A wide range of CDDCs application promotes a variety of materials, sizes and forms of components with limited scopes to supply. Our technologies are focused on small-batch and single-piece production with a thorough step-by-step control.
Crystal diffracting and dispersing components (CDDC)
Crystal diffracting and dispersing components (CDDC) are designed for an X-ray dispersion in equipment for a spectral (analyzing crystals) and a structural analysis (monochromator crystal).
Bourevestnik, JSC manufactures CDDCs optimized with respect to diffraction parameters for serial instruments produced by domestic and world’s leading manufacturers and for the needs of research centers.
Bourevestnik, JSC manufactures CDDCs optimized with respect to diffraction parameters for serial instruments produced by domestic and world’s leading manufacturers and for the needs of research centers.
Applications
All applications
