X-ray transmission (XRT) sorter RGS-5A is designed to recovery valuable minerals from waste materials in the range of -50 +10 using x-ray transmission technology.

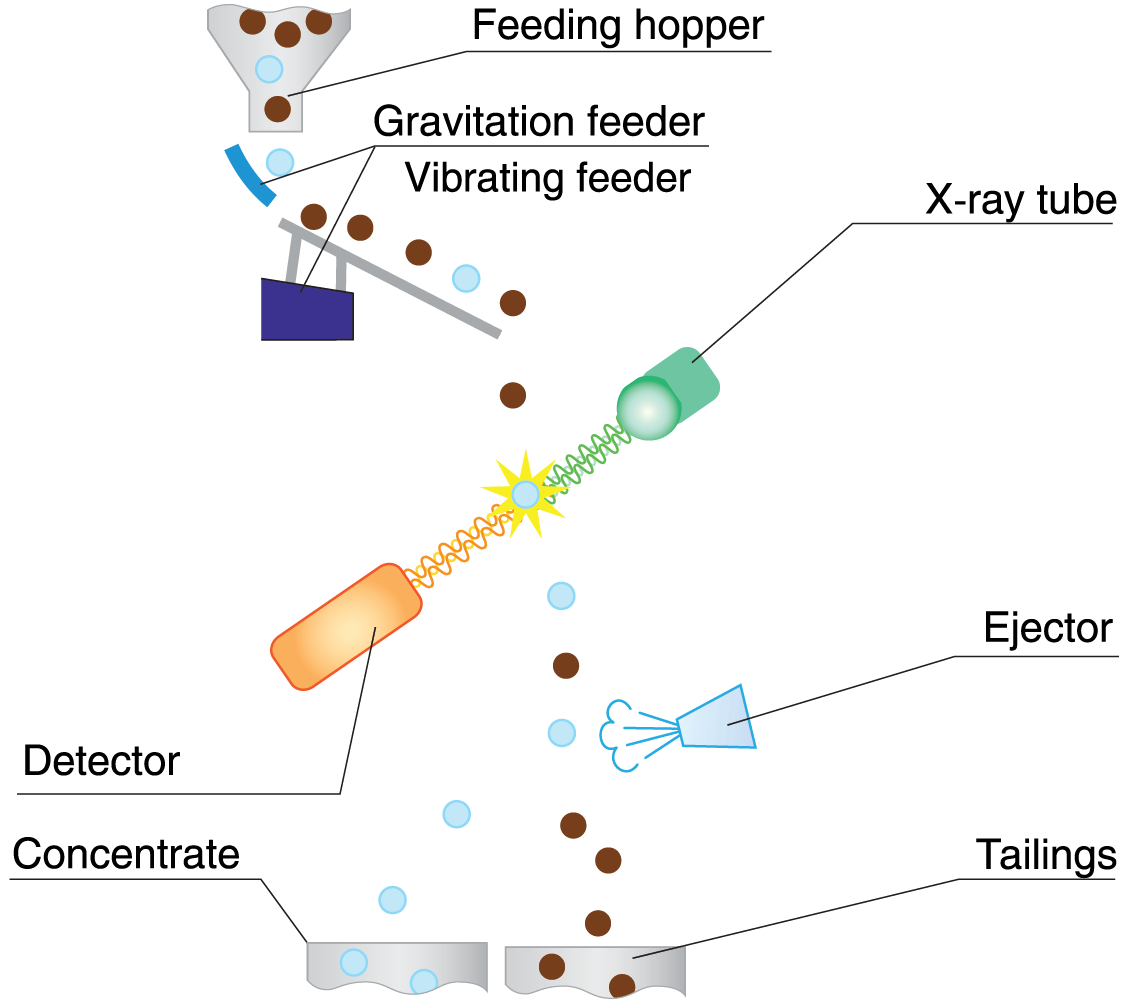

The technology of X-ray absorption systems is penetrating and allows to identify pieces with hidden ore minerals and inclusions. It does not require special preparation of material for separation (washing, surface cleaning), is widely used in mining industry and is one of the most popular types of sorting systems today.
X-ray sorter RGS-5A is used for enrichment of non-diamond mineral raw materials, including enrichment of: gold and silver-containing, apatite, copper-zinc, tin, tungsten, lead, magnesite, chromium, platinum, mercury and other ores of industrial and semi-industrial types of deposits, as well as for separation of metallurgical slags.

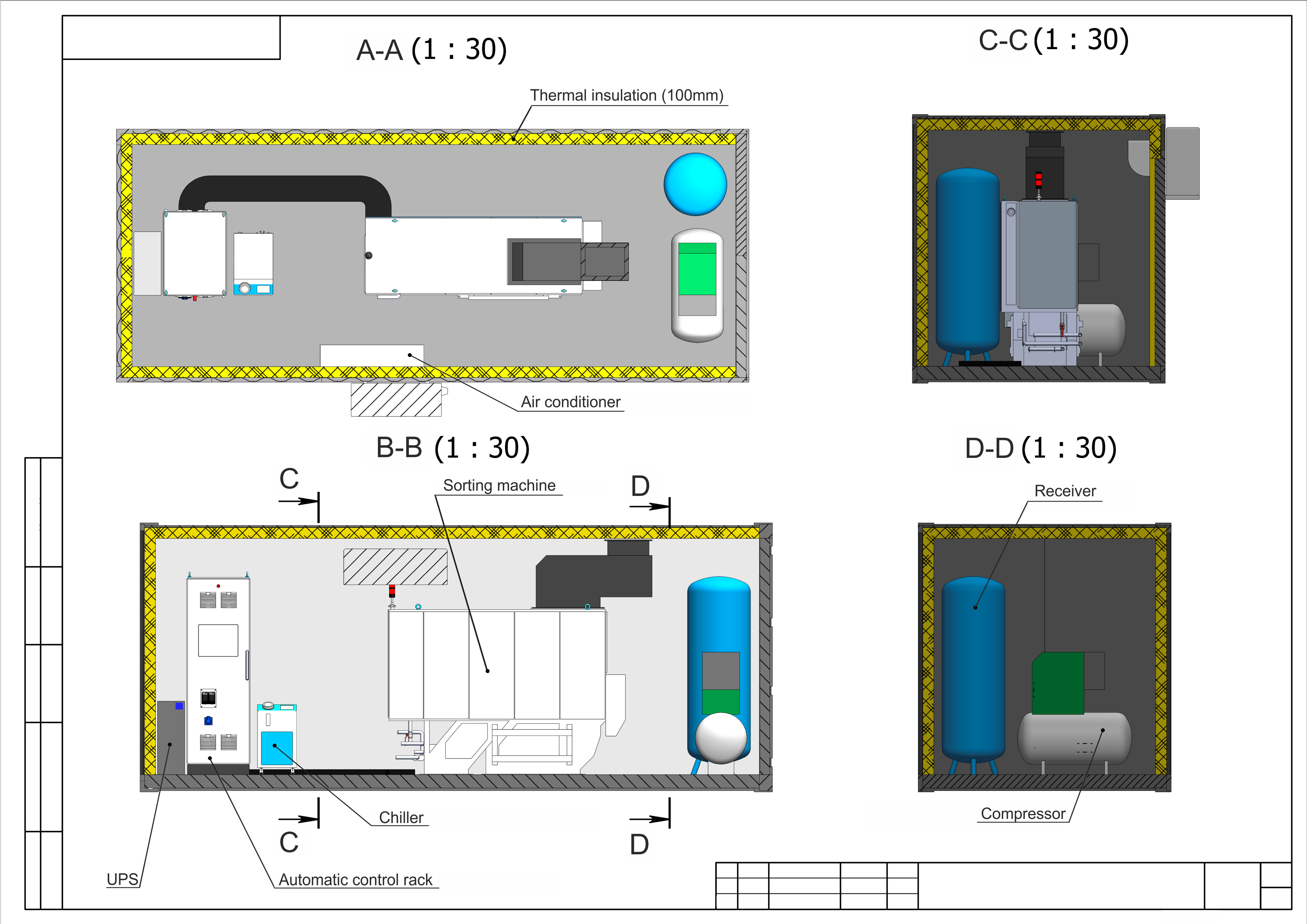

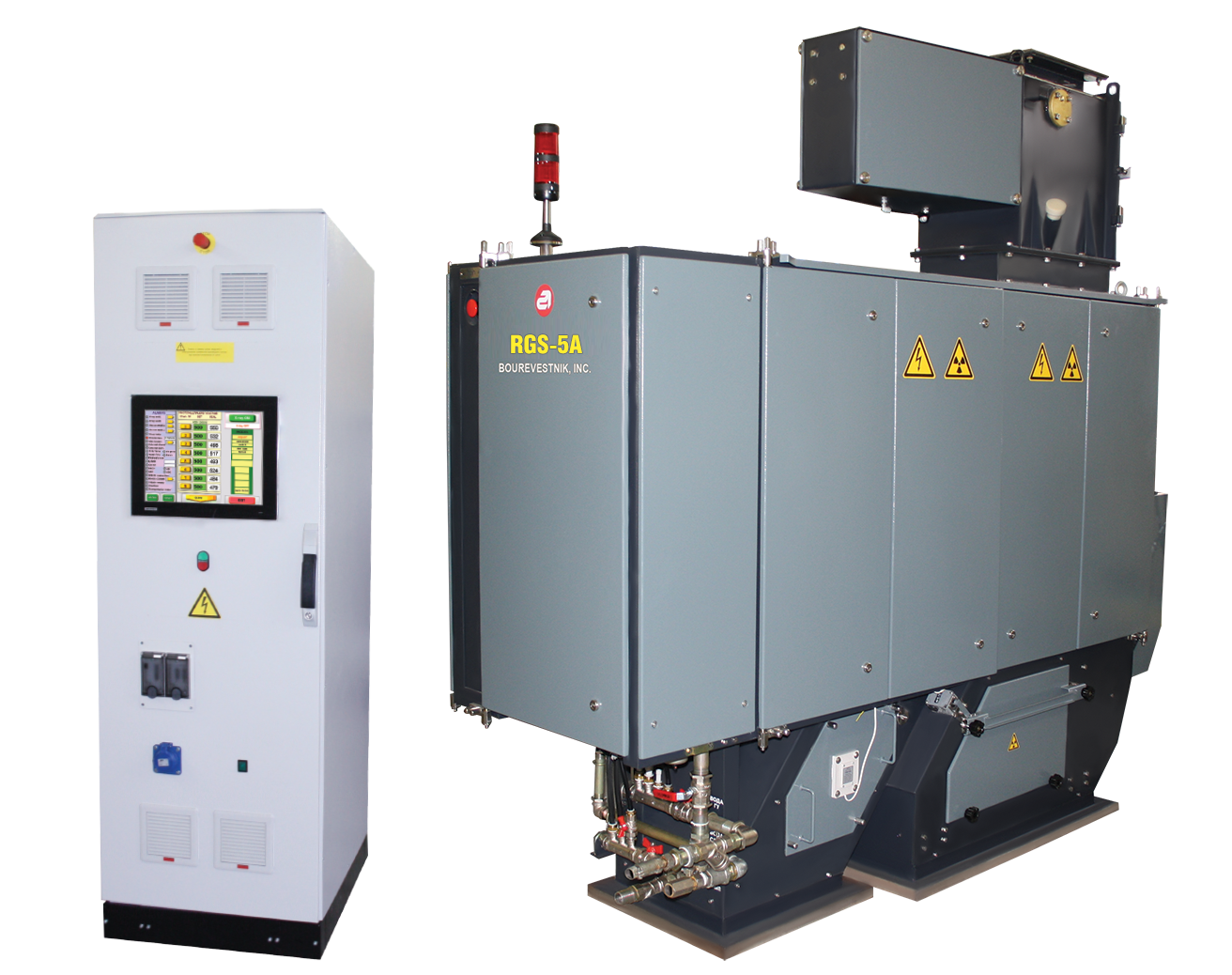

The sorter consists of a sorting machine (SM) and automatic control rack (ACR).
*Preliminary information
